Through the MAX DRILL's experienced engineers, the exclusively developed graphical auxiliary function not only improves the operability, reduces the error rate, and reduces the tool setting time, but also has a monitoring function, which can protect the spindle and the tool from damage.
Manual Measurement | Machining Monitor | ATC Management | Diagnosis & Help | Common Functions
01 Improve Tool And Workpiece Measurement Speed

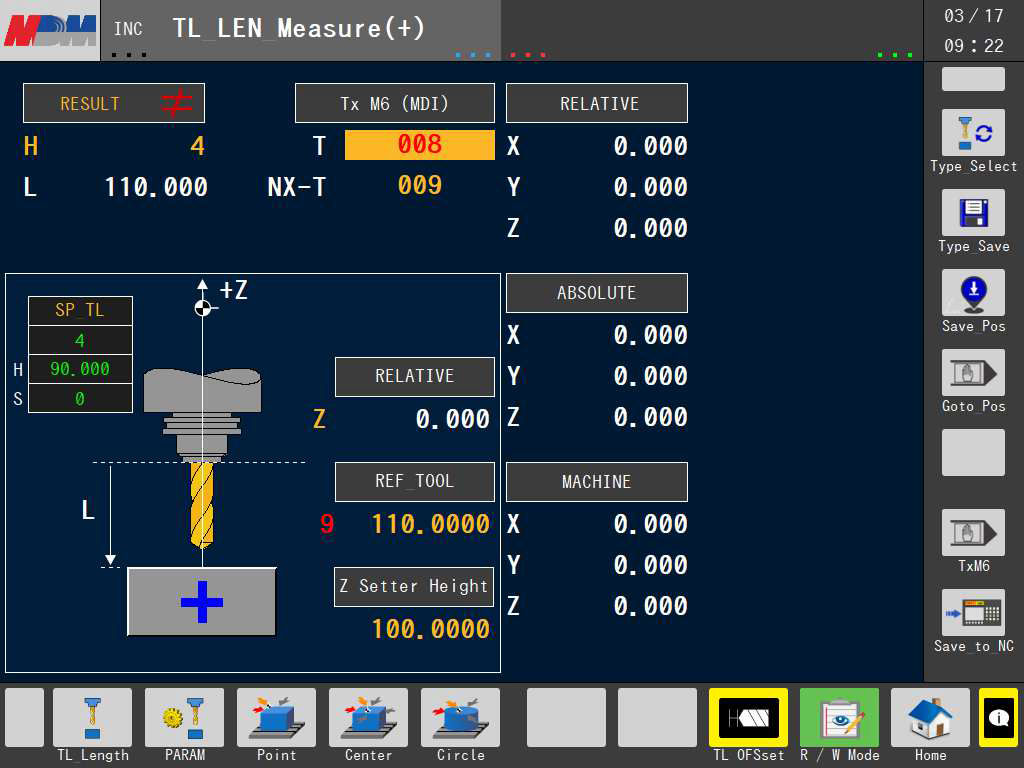

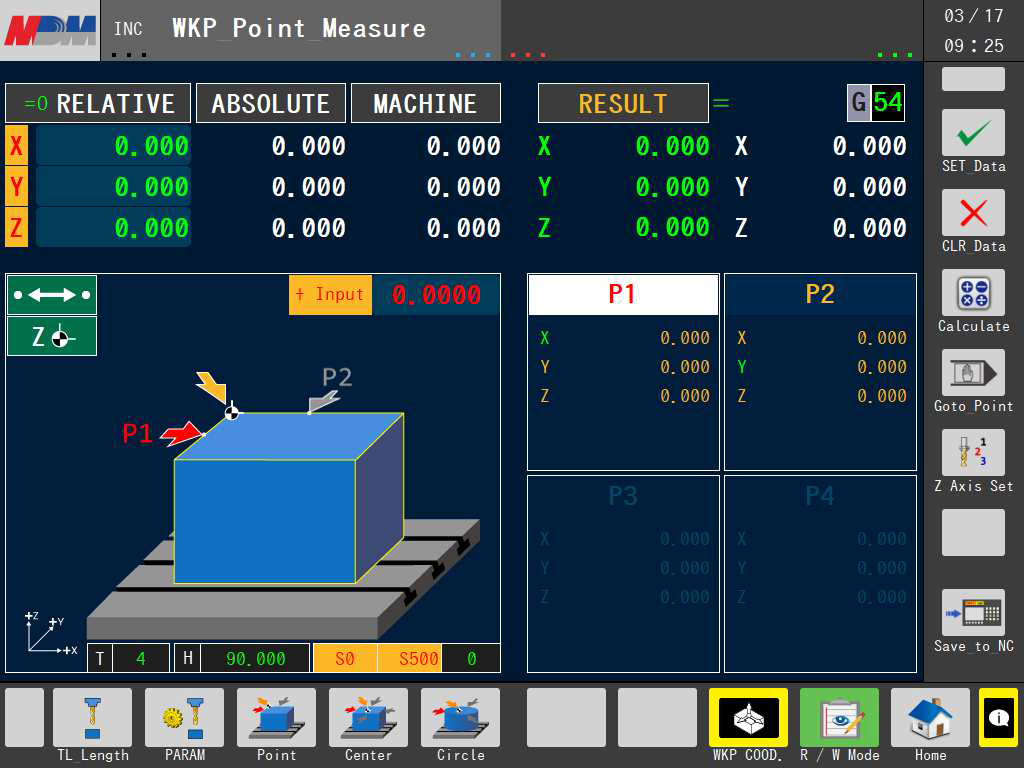

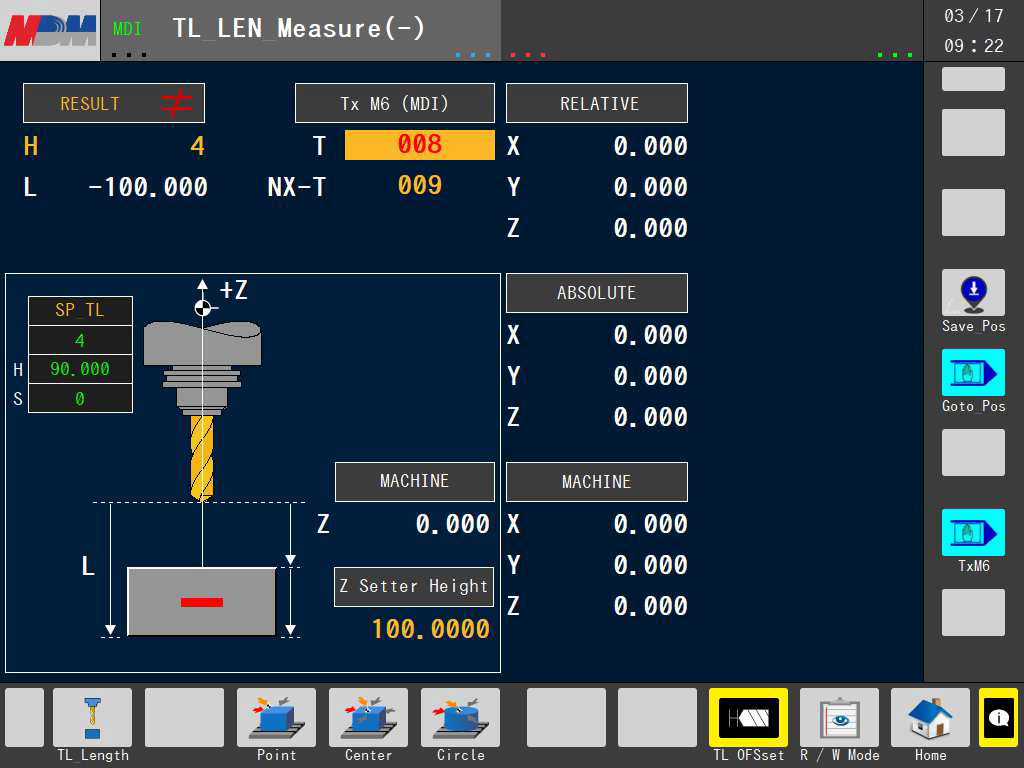

- The function of the manual measurement can measure the circle center point, end point measure, center point measure, and the length of the tool. You can also directly execute the tool exchange on same screen, so that all functions can be executed in the same screen, allowing users to change the workpiece. Fast and convenient, compared to the traditional controller screen, it needs to switch to the screen and set multiple times, which is time-consuming.
- The measurement time can be effectively shortened by 50%, with high efficiency, low error rate and high convenience.
02 Reduce Operating Error Rate
- On the traditional controller screen, the operator has to calculate and input the value by himself. Now it can be directly calculated and input by the NC, which effectively reduces the error rate.
03 Graphic Visualization
- The graphics are visualized and the operation is more direct. The operator can learn quickly and get started easily.
