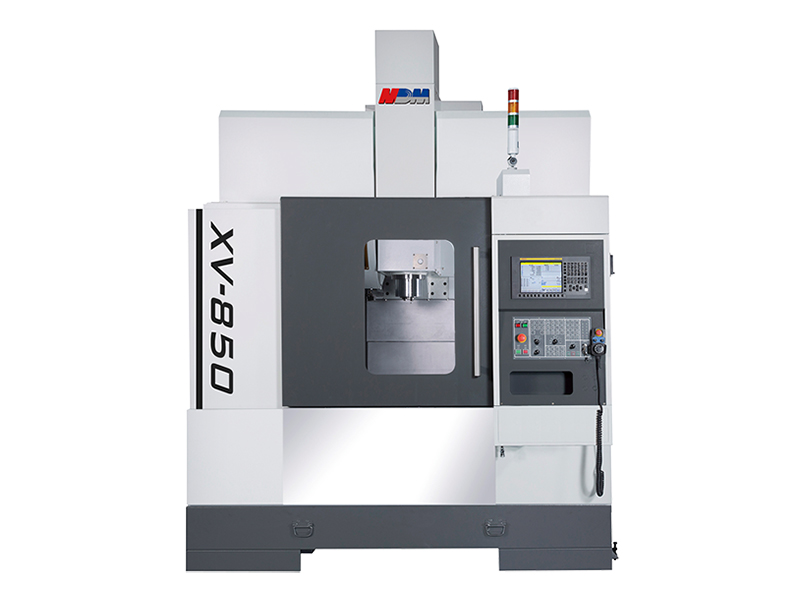

XV850
Vertical Machining Center
Description：
XV-850
X axis: 850mm
Y axis: 510mm
Z axis: 610mm
-
(view more)
※Reserved technical modifications.MODEL XV 850 TABLE Table size mm 1000 x 460 T slot mm CD80 x 18 x 5 Max. table load kg 500 TRAVEL X axis mm 850 Y axis mm 510 Z axis mm 610 Dis. From spindle nose to table mm 140~750 Dis. From spindle center to Z axis telescopic cover mm 500 SPINDLE Taper #40 Speed RPM 10000 Power KW 7.5 / 11 SLIDE WAY Type Ball Type 滾珠線軌 No. of slide way 2 / 3 / 2 Size of slide way #35 / #35 / #35 No. of blocks 6 / 5 / 6 Feedrate Cutting feed mm/min. 5000 Rapid Feedrate M/min. 36 / 36 / 36 ATC Tool No. 24 Tool shank BT/CAT/DIN #40 Max. tool dia.x length mm 75x300 #40 Max. tool weight kg 7 General Power capacity KVA 25 Air Pressure kg/cm 6 Machine Size (Door Close) mm 2200*2480*3090 Machine Size (Door Open) mm 3700*3445*3090 Machine Size(Max. floor space with chip conveyor) mm 4000*3445*3090 Machine Size(Max. floor space with screw type chip conveyor) mm 3700*3445*3090 Machine Weight kg 5200 -
- FANUC Controller
- BT40 Belt Type Spindle 10,000rpm
- Graphical Auxiliary Functions
- 3-axis Cooling System
- Spindle Oil Cooler
- Cutting Coolant System
- Arm Type ATC 24 Tools (Frequency Conversion)
- Auto Lubrication System
- Full-Cover Enclosure
- Heat Exchanger For Electric Cabinet
- Remote MPG
- Coolant Gun/Air Gun
- Work Lamp/3-Color Indicator Light
- Tool Box
- Leveling Bolts & Blocks
-
- Belt Type Spindle 12,000rpm
- Direct Drive Type Spindle 12000/15000rpm
- Arm Type ATC 30 Tools (Frequency Conversion)
- Grease Lubrication System
- Link Belt Type Chip Conveyor
- Screw Type Chip Conveyor
- Internal Double Screw Chip Removal System
- Air Conditioner For Electric Cabinet
- Oil Skimmer
- Oil Mist Collector
- 4th Axis Rotary Table
- Tool Probe
- Workpiece Set Up Probe
- Transformer
-
※Reserved technical modifications.
-
Chip Conveyor Floor Space
※Reserved technical modifications.
-
Specification(view more)
※Reserved technical modifications.MODEL XV 850 TABLE Table size mm 1000 x 460 T slot mm CD80 x 18 x 5 Max. table load kg 500 TRAVEL X axis mm 850 Y axis mm 510 Z axis mm 610 Dis. From spindle nose to table mm 140~750 Dis. From spindle center to Z axis telescopic cover mm 500 SPINDLE Taper #40 Speed RPM 10000 Power KW 7.5 / 11 SLIDE WAY Type Ball Type 滾珠線軌 No. of slide way 2 / 3 / 2 Size of slide way #35 / #35 / #35 No. of blocks 6 / 5 / 6 Feedrate Cutting feed mm/min. 5000 Rapid Feedrate M/min. 36 / 36 / 36 ATC Tool No. 24 Tool shank BT/CAT/DIN #40 Max. tool dia.x length mm 75x300 #40 Max. tool weight kg 7 General Power capacity KVA 25 Air Pressure kg/cm 6 Machine Size (Door Close) mm 2200*2480*3090 Machine Size (Door Open) mm 3700*3445*3090 Machine Size(Max. floor space with chip conveyor) mm 4000*3445*3090 Machine Size(Max. floor space with screw type chip conveyor) mm 3700*3445*3090 Machine Weight kg 5200 -
Standard Accessories
- FANUC Controller
- BT40 Belt Type Spindle 10,000rpm
- Graphical Auxiliary Functions
- 3-axis Cooling System
- Spindle Oil Cooler
- Cutting Coolant System
- Arm Type ATC 24 Tools (Frequency Conversion)
- Auto Lubrication System
- Full-Cover Enclosure
- Heat Exchanger For Electric Cabinet
- Remote MPG
- Coolant Gun/Air Gun
- Work Lamp/3-Color Indicator Light
- Tool Box
- Leveling Bolts & Blocks
-
Optional Accessories
- Belt Type Spindle 12,000rpm
- Direct Drive Type Spindle 12000/15000rpm
- Arm Type ATC 30 Tools (Frequency Conversion)
- Grease Lubrication System
- Link Belt Type Chip Conveyor
- Screw Type Chip Conveyor
- Internal Double Screw Chip Removal System
- Air Conditioner For Electric Cabinet
- Oil Skimmer
- Oil Mist Collector
- 4th Axis Rotary Table
- Tool Probe
- Workpiece Set Up Probe
- Transformer
-
Work Range※Reserved technical modifications.
-
Floor SpaceChip Conveyor Floor Space
※Reserved technical modifications.
Features
-
01 Excellent Rigidity And High Stability Dynamic Accuracy

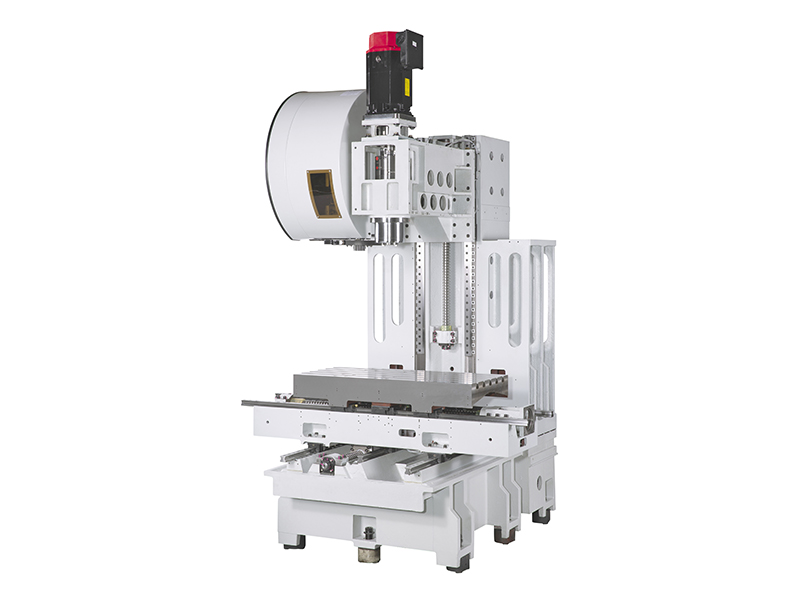

- Strengthened and widened column, X type ribs design, increase the rigidity.
- 3-linear guideway in Y axis(Base), improve the dynamic accuracy and rigidity, keep stable. It is obvious when machining with 4th axis rotary table and tailstock.

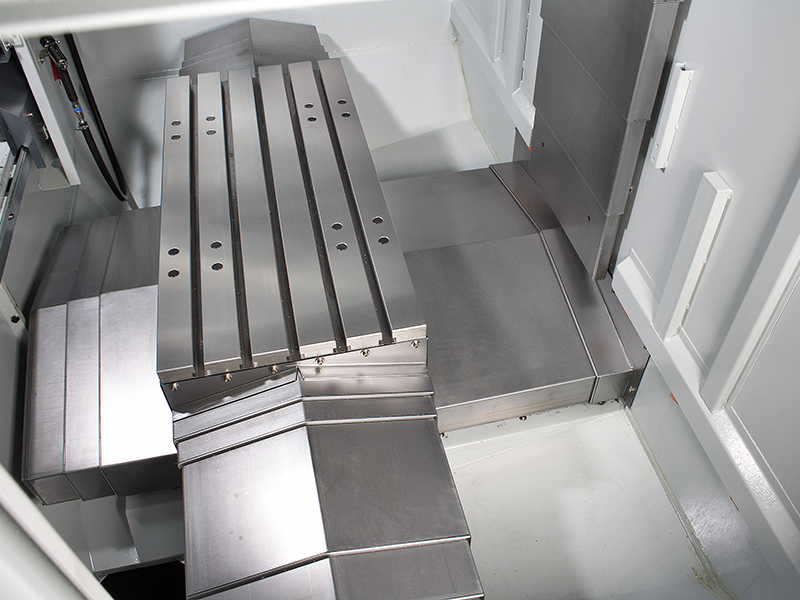

- 6 blocks in X axis linear guideway(work table), improve the dynamic accuracy and rigidity, keep stable.
-
02Improve Accuracy Life

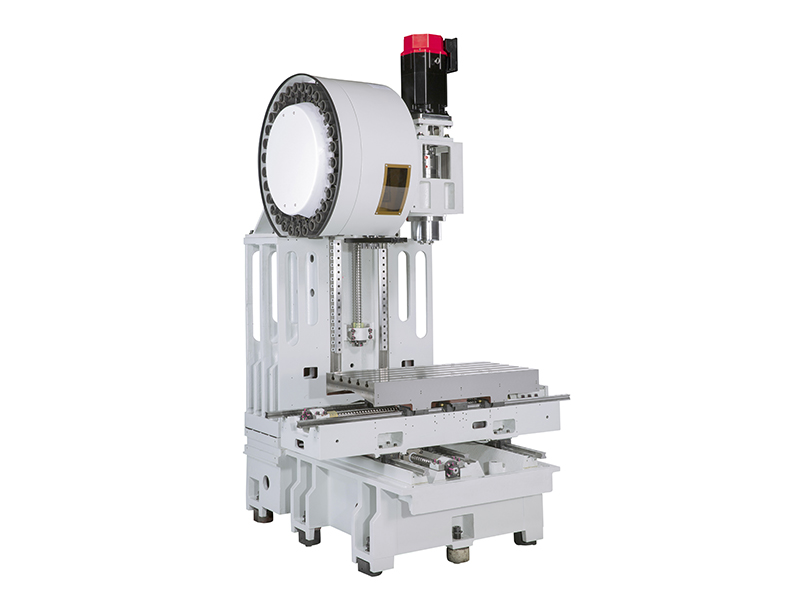

- Tool magazine sit on the column, it can eliminate the influence from the weight of the tool magazine, and keep the accuracy.
-
03Tool Magazine Capacity Upgrade(Opt.)
- 24 tools arm type ATC is standard. The second tool magazine is optional according to the capacity requirements of the automatic. Max. capacity is 60 tools.(30+30 tools)
-
04Frequency-controlled Tool Magazine
- Inverter controls the movement of the tool magazine motor, resistive braking, prevents abnormal braking operation, ensures smooth tool change.
-
05 Internal Double Screw Chip Removal System (Opt.)
- Internal double screw chip removal system is equipped with chip flushing system, which effectively improves the chip removal efficiency.
Model
XV 850
Table size
1000 x 460 mm
T slot
CD80 x 18 x 5 mm
Max. table load
500 kg
X axis
850 mm
Y axis
510 mm
Z axis
610 mm
Dis. From spindle nose to table
140~750 mm
Dis. From spindle center to Z axis telescopic cover
500 mm
