AX532
5-Axis Machining Center
Description：
X axis: 450mm
Y axis: 460mm
Z axis: 450mm
-
(*請左右滑動觀看)
※Reserved technical modifications.MODEL AX 532 TILTING ROTARY TABLE Table size mm Ø320 Tilting A axis degree 150(+30°~-120°) Rotary C axis degree 360° Table load capacity (in horizontal) kg 150 Table load capacity (in vertical) kg 100 T slot mm 4 x 12 Center bore diameter mm Ø50 H7 TRAVEL X axis mm 450 Y axis mm 460 Z axis mm 450 Distance from spindle nose to table ( 0 Deg.) mm 20~470 Distance from spindle center to table center (90 Deg.) mm 60~470 Dis. From spindle center to Z axis telescopic cover mm 500 SPINDLE Taper #40 Speed RPM 12000 Power KW 7.5 / 11 SLIDE WAY Type Roller Type No. of slide way 2 / 3 / 2 Size of slide way #35 / #35 / #35 No. of blocks 6 / 5 / 6 Feedrate Cutting feed mm/min. 5000 Rapid Feedrate X/Y/Z 20 / 20 / 20 Rapid Feedrate A/C M/min. 15 / 20 ATC Tool No. 24 Tool shank BT/CAT/DIN #40 Max. tool dia.x length mm 75x250 #40 Max. tool weight kg 7 General Power capacity KVA 40 Air Pressure kg/cm 6 Machine Size (Door Close) mm 2200 x 2480 x 3090 Machine Size (Door Open) mm 3700 x 3445 x 3090 Machine Size(Max. floor space with chip conveyor) mm 4000 x 3445 x 3090 Machine Size(Max. floor space with screw type chip conveyor) mm 3700 x 3445 x 3090 Machine Weight kg 5500 -
- FANUC Controller
- BBT40 Direct Drive Type Spindle 12000rpm
- Graphical Auxiliary Functions
- 3-axis Cooling System
- Spindle Oil Cooler
- Cutting Coolant System
- Arm Type ATC 24 Tools (Frequency Conversion)
- Auto Lubrication System
- Full-Cover Enclosure
- Heat Exchanger For Electric Cabinet
- Remote MPG
- Coolant Gun/Air Gun
- Work Lamp/3-Color Indicator Light
- Tool Box
- Leveling Bolts & Blocks
-
- Direct Drive Type Spindle 15000rpm
- Arm Type ATC 30 Tools (Frequency Conversion)
- Grease Lubrication System
- Link Belt Type Chip Conveyor
- Screw Type Chip Conveyor
- Air Conditioner For Electric Cabinet
- Oil Skimmer
- Oil Mist Collector
- Tool Probe
- Workpiece Set Up Probe
- Linear Scale
- Transformer
-
Specification(*請左右滑動觀看)
※Reserved technical modifications.MODEL AX 532 TILTING ROTARY TABLE Table size mm Ø320 Tilting A axis degree 150(+30°~-120°) Rotary C axis degree 360° Table load capacity (in horizontal) kg 150 Table load capacity (in vertical) kg 100 T slot mm 4 x 12 Center bore diameter mm Ø50 H7 TRAVEL X axis mm 450 Y axis mm 460 Z axis mm 450 Distance from spindle nose to table ( 0 Deg.) mm 20~470 Distance from spindle center to table center (90 Deg.) mm 60~470 Dis. From spindle center to Z axis telescopic cover mm 500 SPINDLE Taper #40 Speed RPM 12000 Power KW 7.5 / 11 SLIDE WAY Type Roller Type No. of slide way 2 / 3 / 2 Size of slide way #35 / #35 / #35 No. of blocks 6 / 5 / 6 Feedrate Cutting feed mm/min. 5000 Rapid Feedrate X/Y/Z 20 / 20 / 20 Rapid Feedrate A/C M/min. 15 / 20 ATC Tool No. 24 Tool shank BT/CAT/DIN #40 Max. tool dia.x length mm 75x250 #40 Max. tool weight kg 7 General Power capacity KVA 40 Air Pressure kg/cm 6 Machine Size (Door Close) mm 2200 x 2480 x 3090 Machine Size (Door Open) mm 3700 x 3445 x 3090 Machine Size(Max. floor space with chip conveyor) mm 4000 x 3445 x 3090 Machine Size(Max. floor space with screw type chip conveyor) mm 3700 x 3445 x 3090 Machine Weight kg 5500 -
Standard Accessories
- FANUC Controller
- BBT40 Direct Drive Type Spindle 12000rpm
- Graphical Auxiliary Functions
- 3-axis Cooling System
- Spindle Oil Cooler
- Cutting Coolant System
- Arm Type ATC 24 Tools (Frequency Conversion)
- Auto Lubrication System
- Full-Cover Enclosure
- Heat Exchanger For Electric Cabinet
- Remote MPG
- Coolant Gun/Air Gun
- Work Lamp/3-Color Indicator Light
- Tool Box
- Leveling Bolts & Blocks
-
Optional Accessories
- Direct Drive Type Spindle 15000rpm
- Arm Type ATC 30 Tools (Frequency Conversion)
- Grease Lubrication System
- Link Belt Type Chip Conveyor
- Screw Type Chip Conveyor
- Air Conditioner For Electric Cabinet
- Oil Skimmer
- Oil Mist Collector
- Tool Probe
- Workpiece Set Up Probe
- Linear Scale
- Transformer
Features
-
01Machine Structure

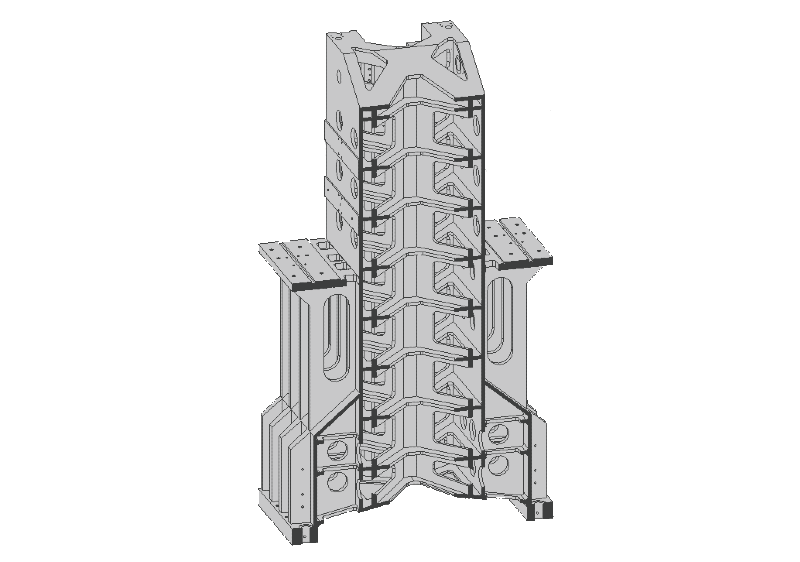

- Strengthened and widened column, X type ribs design, increase the rigidity.

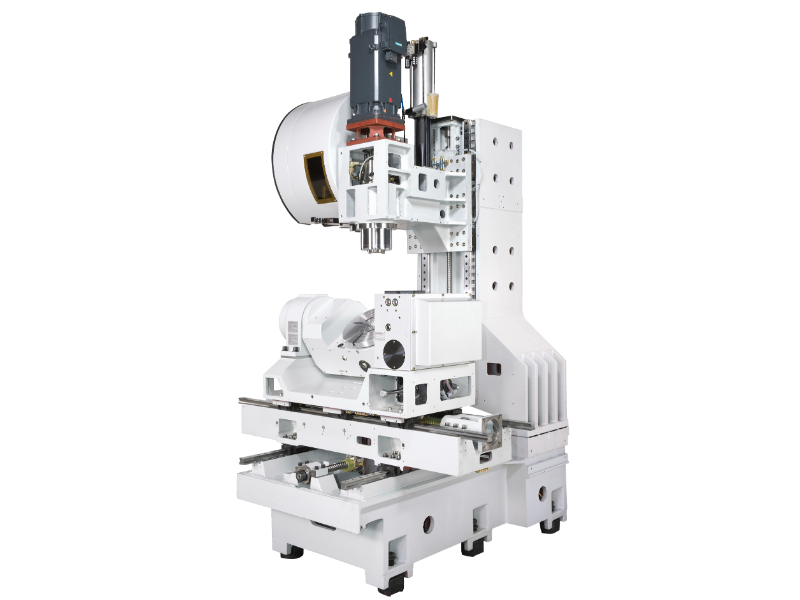

- 3-linear guideway in Y axis(Base), improve the dynamic accuracy and rigidity, keep stable.
- 6 blocks in X axis linear guideway(work table), improve the dynamic accuracy and rigidity, keep stable.
-
02Improve Accuracy Life

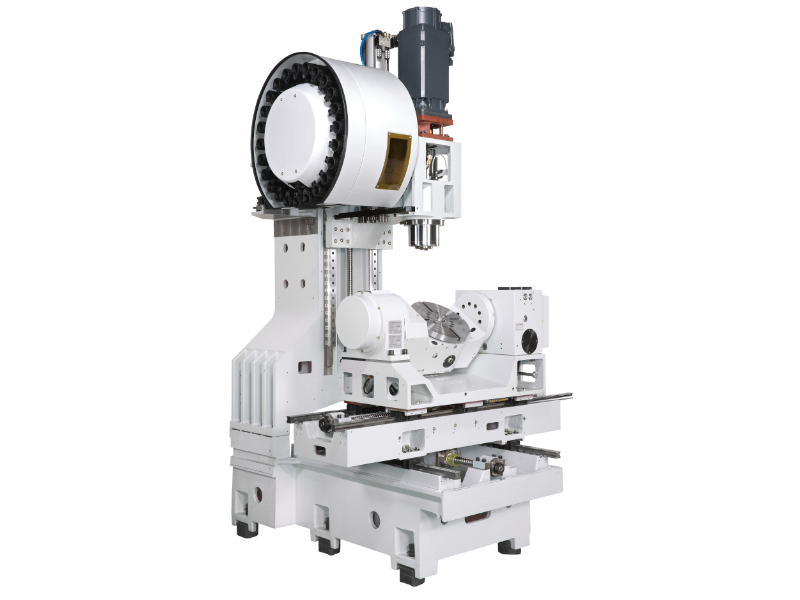

- Tool magazine sit on the column, it can eliminate the influence from the weight of the tool magazine, and keep the accuracy.
-
03Frequency-controlled Tool Magazine
- Inverter controls the movement of the tool magazine motor, resistive braking, prevents abnormal braking operation, ensures smooth tool change.
-

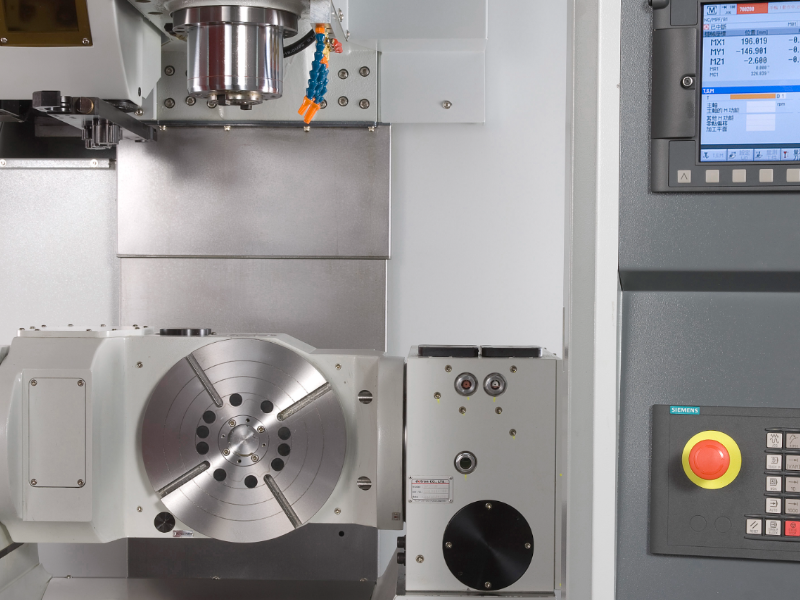

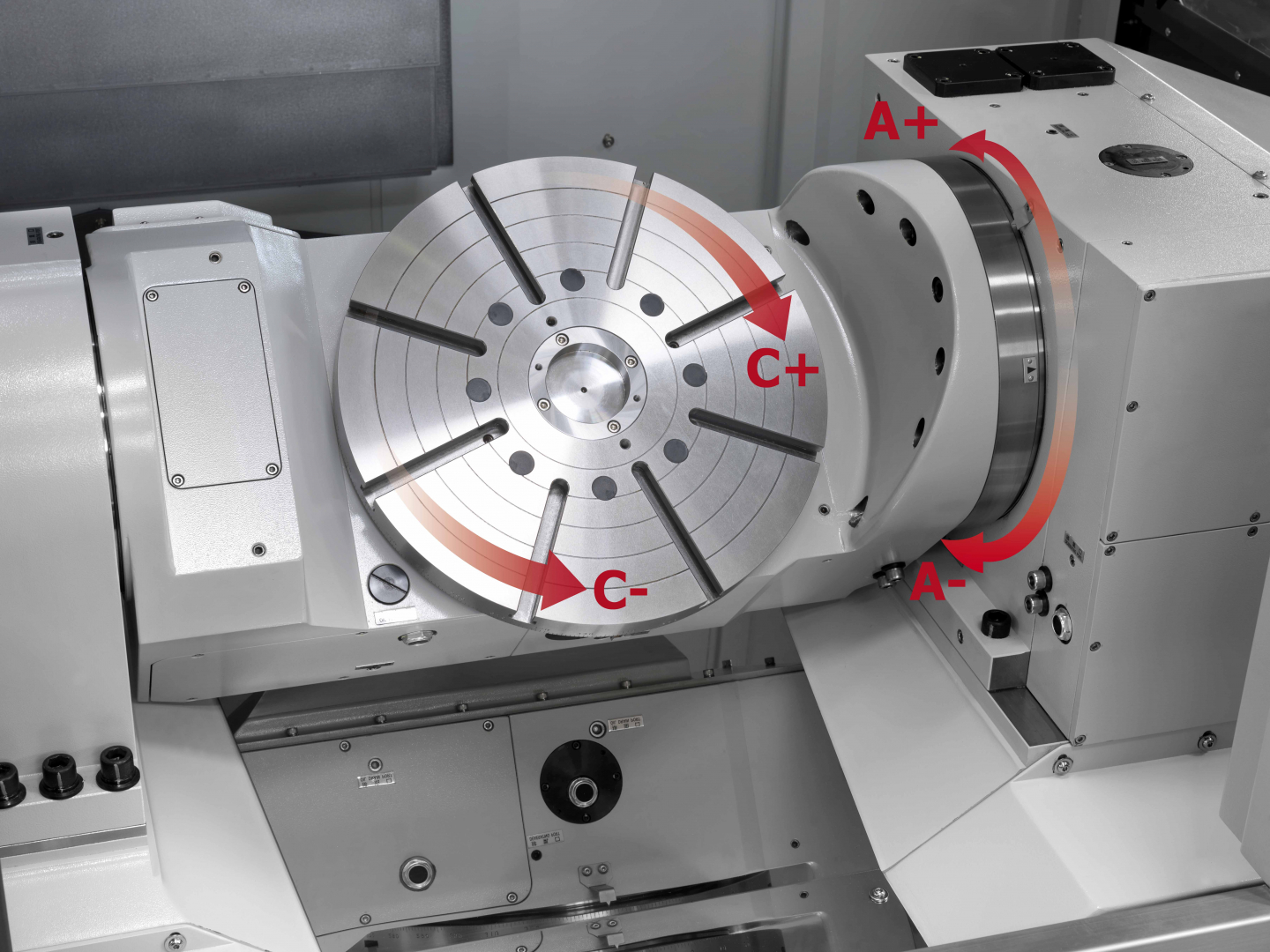

04High Accuracy, Hight Rigidity Rotary Table
- Contact surface of the dual lead worm is greater than conventional worms, this makes the rotary table excellent for heavy cutting applications.
- Greater module and higher tooth depth is more suitable for heavy cuttion.
- A/C axis encoder is standard, offering better axial synchronization and indexing accuracy.
Model
AX 532
Table size
Ø320 mm
T slot
4 x 12 mm
Table load capacity (in horizontal)
150 kg
Table load capacity (in vertical)
100 kg
X axis
450 mm
Y axis
460 mm
Z axis
450 mm
Tilting A axis
150°(+30°~-120°)
Rotary C axis
360°
